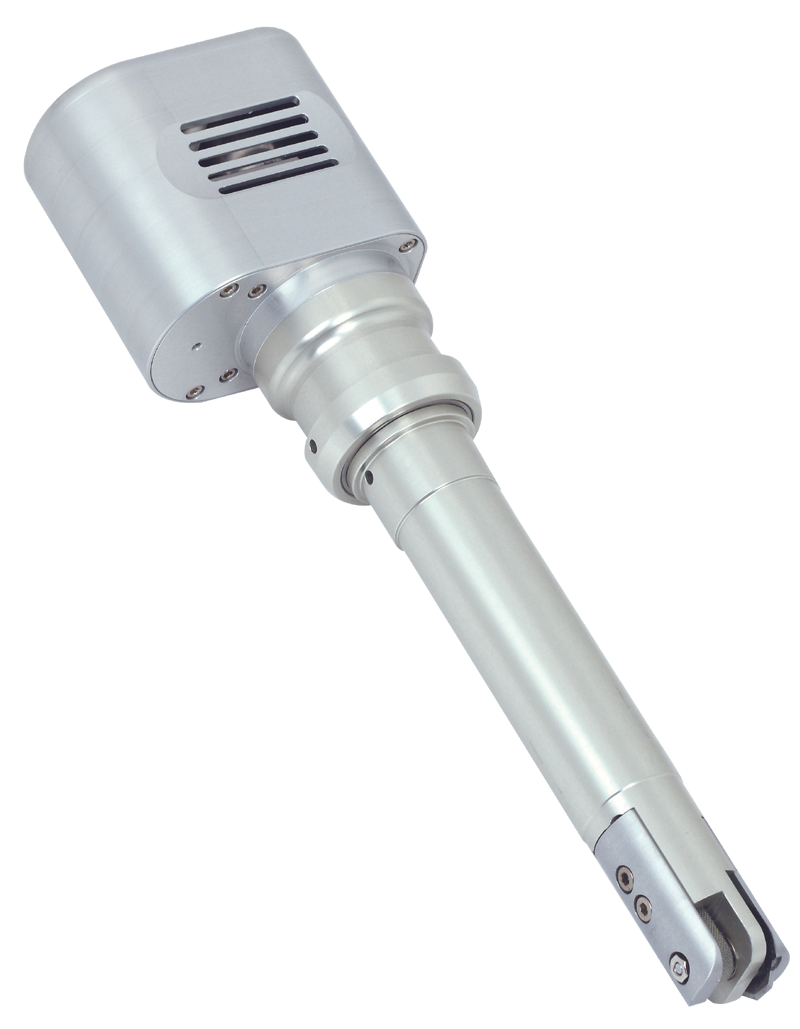

RKT (Reciprocating Knife Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

This tool has four types of strokes, and the blade moves up and down depending on the stroke.

RKT Maxon motor drives the knife to oscillate up and down at high frequencies to cut through materials.

The larger the stroke (the distance the blade travels), the lower the RPM of the motor.


1. Strok 0.6mm (Max 15,000rpm)

2. Strok 1.2mm (Max 13,000rpm)

3. Strok 2.0mm (Max 12,000rpm)

4. Strok 4.0mm (Max 8,500rpm)

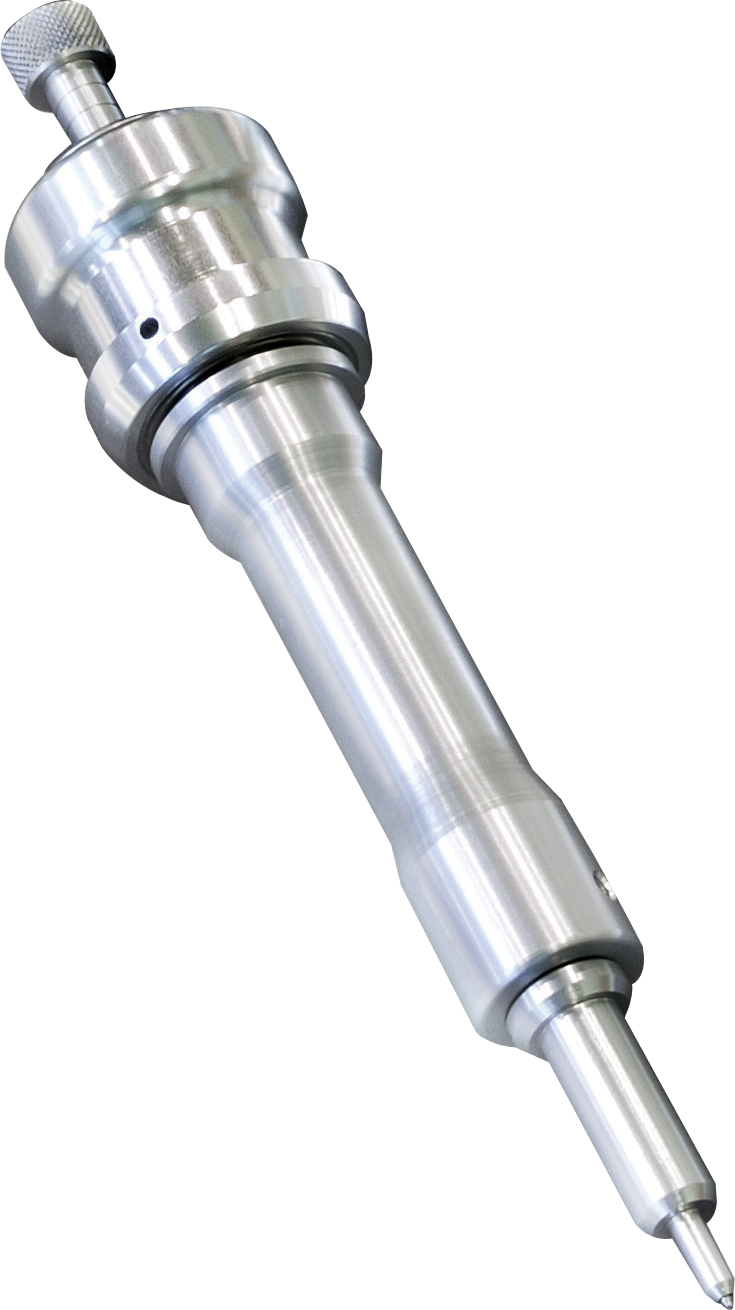

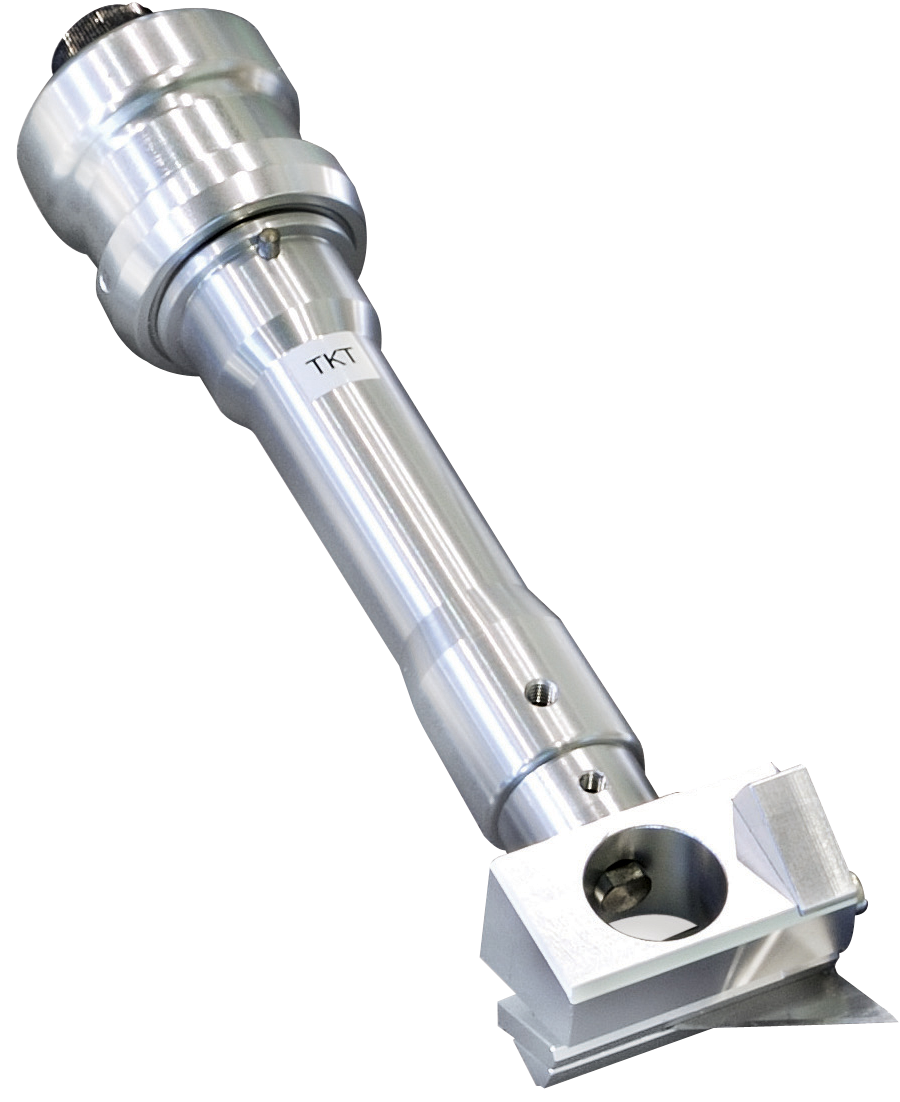

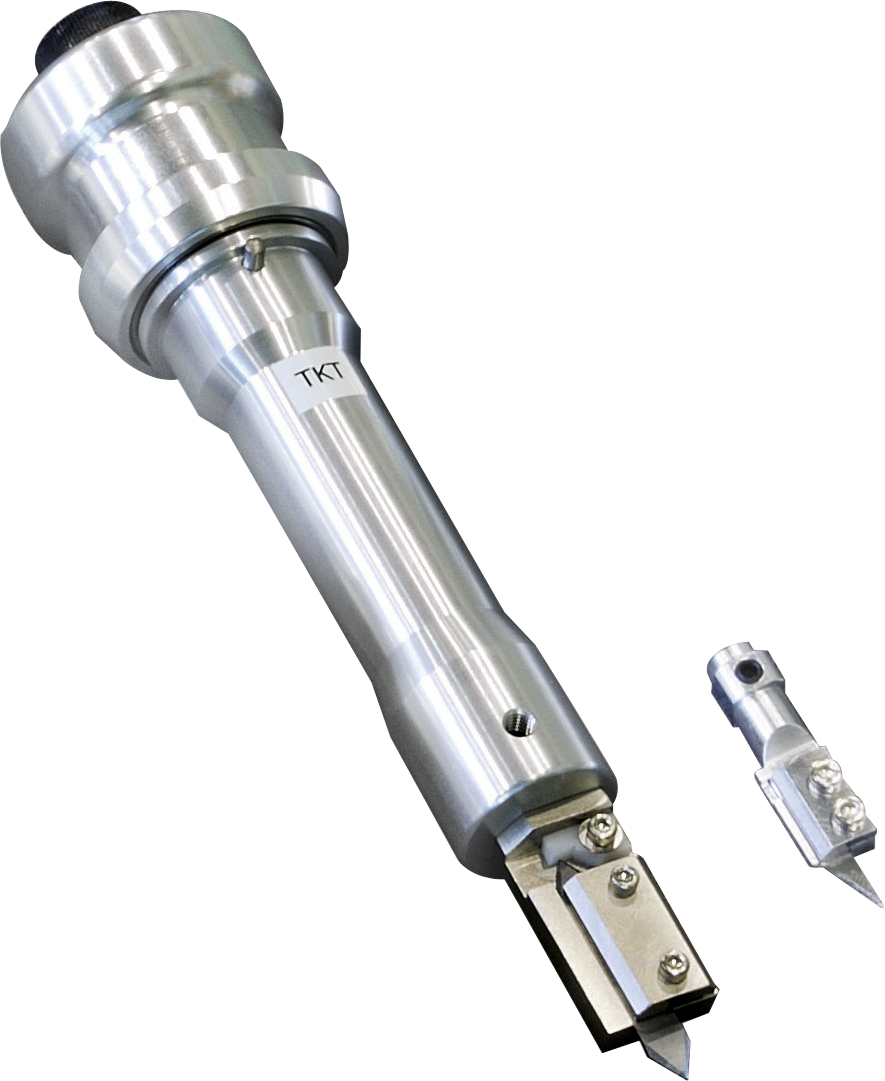

TKT (Tangential Knife Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

This tool cuts as much as the depth of the set blade, and since there is no stroke, TKT cuts in a straight or curved motion after reaching the specified cutting depth.

For differences from KKT, refer to the KKT specification below.

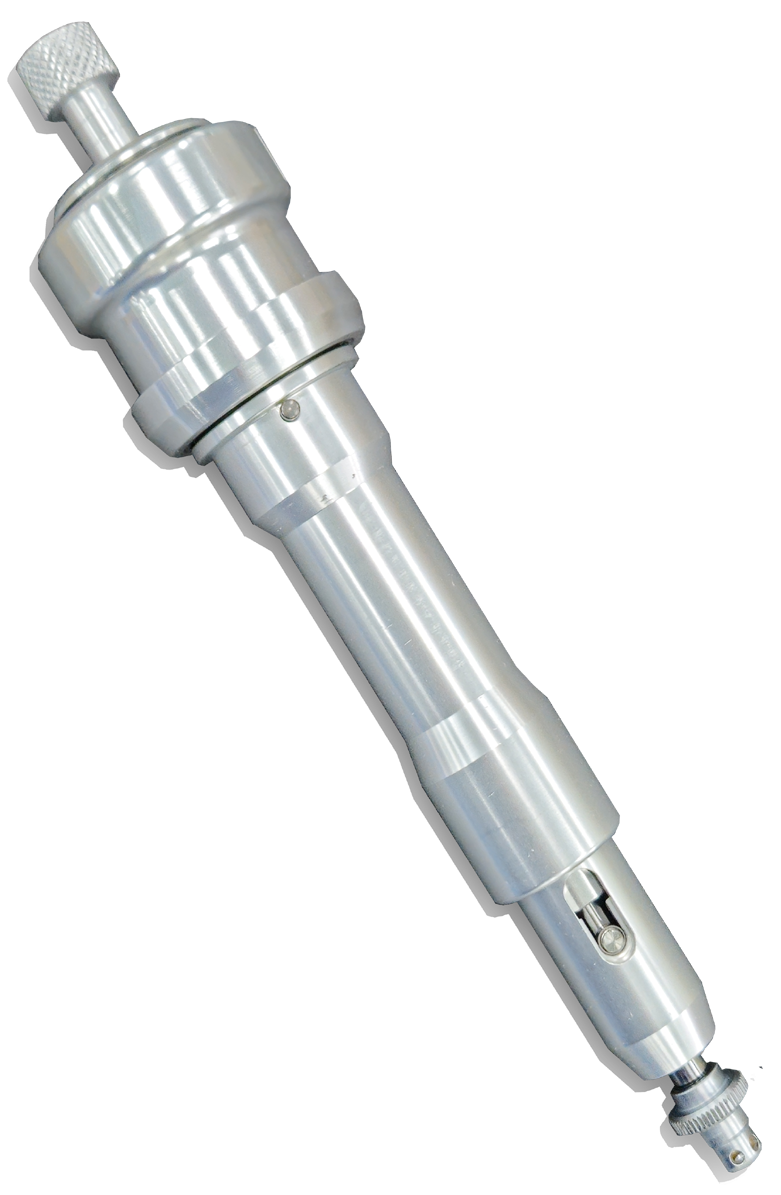

KKT (Kisscut Knife Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

This tool is used to cut two layered material.

In order to cut only the upper layer material without giving any scratches to the material in the lower layer,

we use this KKT.

   What is the difference between TKT and KKT?



mobile background
DYSS Cutter Tool CRT, 대영시스템 커팅기 툴 CRT, Creasing Tool
DYSS Cutter Tool CRT, 대영시스템 커팅기 툴 CRT, Creasing Tool

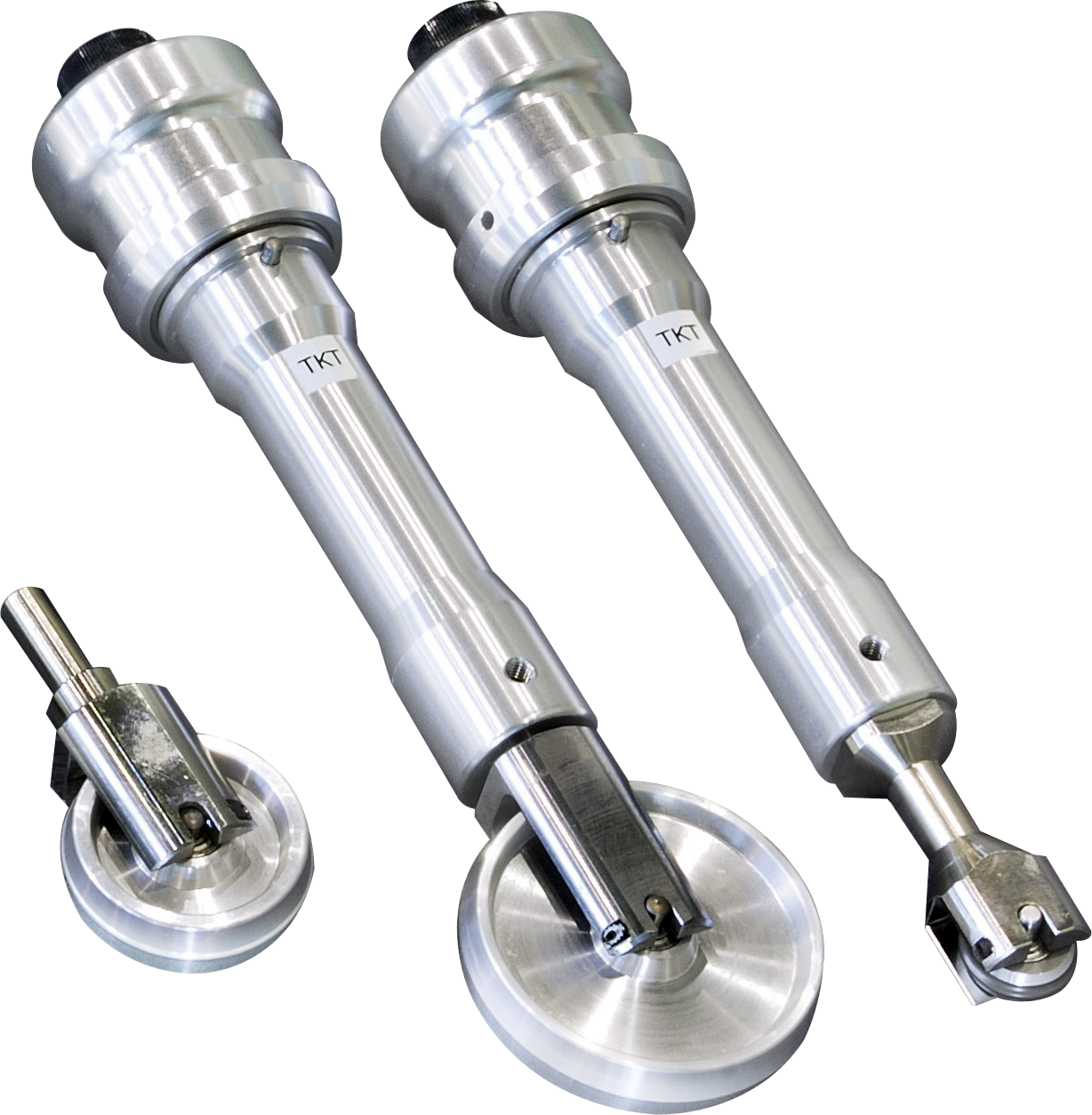

CRT (Creasing Roller Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

This Creasing tool allows you to fold the carton box, paper/plastic corrugated board and ETC easily.

There are many creasing wheels of various diameters and widths.

In addition to the types of rollers listed below, URT (Ultra Roller Tool) with a diameter of Ø150 can also be selected. However, URT can only be available on the Combo Head of X7 and X9 cutter series.


XVT (X-Board V-Cut Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

XVT is a tool for making V-notching cuts on triple wall corrugated or sandwich boards,

and for folding the slanted cutting edges after cutting at the required angle.

There are three types of holders used for this tool, and the angles are as follows.


1. 90° Holder

2. 120° Holder

3. Multi Angle holder (22.5°, 30°, 45°) : 3 types of angles adjustable


SPT (Sleeve Plotter-pen Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

The pen tool is to draw something on clear vinly, CCP (cast Coated Pater) or leather.

You can choose from a variety of color pens against the material color.


RBT (Rotating Blade Tool)

** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.

RBT is another tool that uses a motor just like the RKT.

RKT cuts the material by high-speed vertical movement, but RBT cuts by rotating the blade at high speed.

It is mainly used for fabric, leather or glass fiber materials.

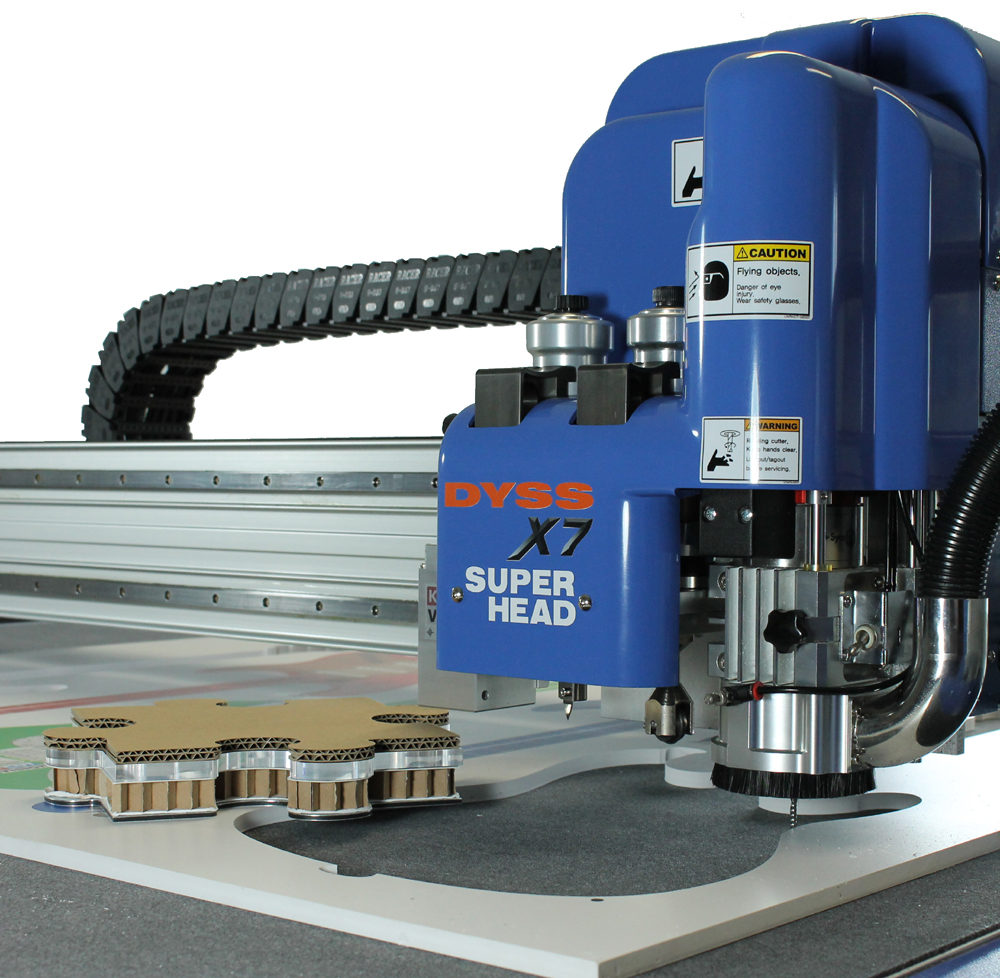

ROUTER

** Only available for X7 & X9 series.

Router is mainly used for cutting, drilling, milling, grinding, and engraving of acrylic, wood, and aluminum panels.

The maximum speed is 60,000rpm, and the maximum power is 1,050w.

DYSS' cutting machine's accurate movement and powerful router can provide the best quality customer wants.
